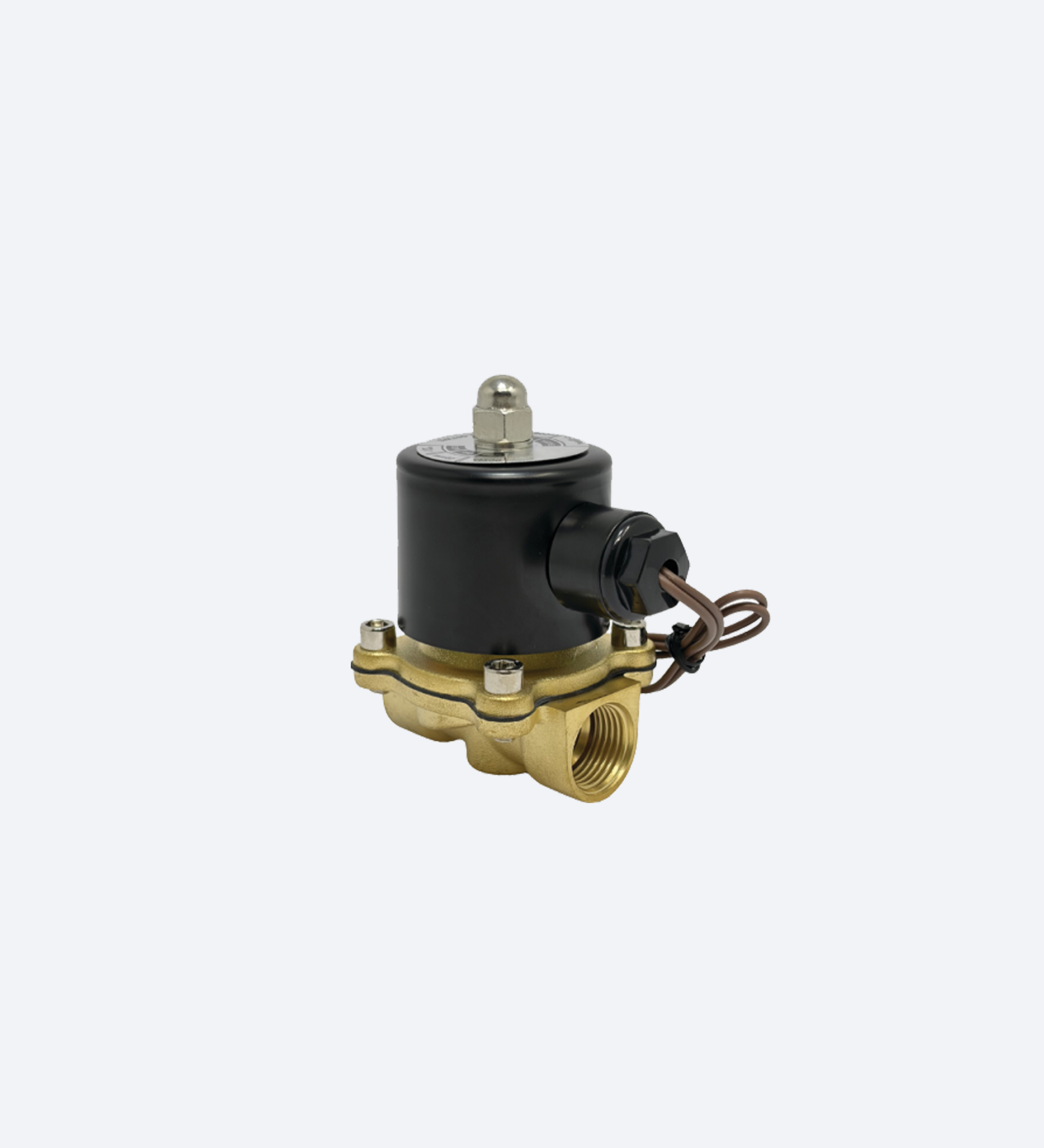

2/2 Way Solenoid Valve (2W025-08)
2/2 Way Solenoid Valve (2W025-08)
The 2/2 Way Solenoid Valve (2W025-08) is designed for precise and reliable control of fluid flow.
Its compact construction makes it suitable for various pneumatic, industrial, and automation applications.
It provides quick response and smooth operation for efficient on/off flow control.
Built for durability and dependable performance, it offers easy installation and long-lasting service.
Specifications
| MODEL | 2W025-08 | 2W160-15 |
|---|---|---|
| Working Medium | Air, Water, Oil, Gas | |
| Motion Pattern | Direct Drive Type | |
| Type | Normal Close Type | |
| Aperture of Flow Rate (mm) | 2.5 | 16 |
| CV Value | 0.23 | 4.8 |
| Port Size | 1/4" | 1/2" |
| Working Pressure | 0~0.7mpa | |
| Max Pressure Resistance | 1.0mpa | |
| Operating Temperature Range | -5~+80°C | |
| Voltage Range | ±10% | |
| Material of Body | Brass | |
| Material of Oil Seal | NBR | |
