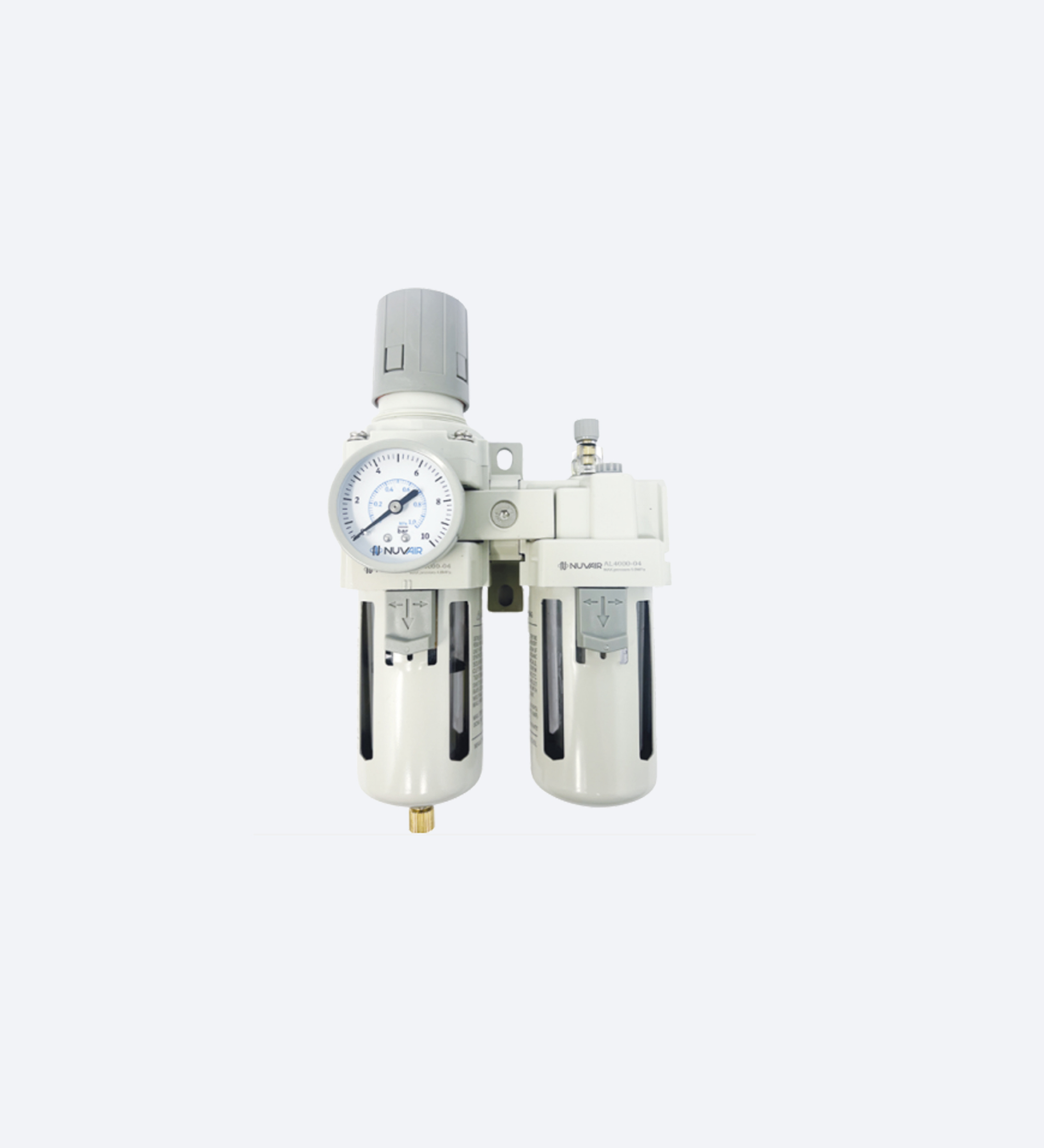

The Filter, Regulator & Lubricator is designed to provide clean, regulated, and lubricated air for pneumatic systems.
It effectively removes moisture and impurities while maintaining stable and adjustable air pressure.
The lubricator supplies a controlled amount of oil to enhance component performance and reduce wear.
Compact and durable, it ensures smooth operation, reliable performance, and extended equipment life.
Specifications
Ordering Code

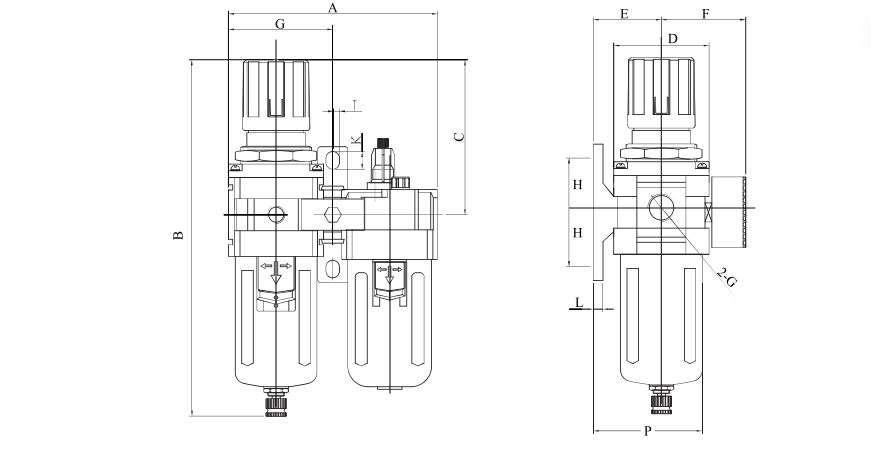

Dimensions
| MODEL | AC2010-02 | AC4010-04 |
|---|---|---|
| Proof Pressure | 1.5mpa (15.3kgf/cm²) | |
| Max. Working Pressure | 1.0mpa (10.2kgf/cm²) | |
| Environment and Fluid Temperature | 5~60°C | |
| Pressure Regulating Range | 0.05~0.85mpa (0.51~8.7kgf/cm²) | |
| Filter Aperture | 5um | |
| AC | 2010 | 02 |
|---|---|---|
| Series | Shell Size 2010 4010 |
Thread 02:1/4" 04:1/2" |
| MODEL | Port Size (G) | A | B | C | D | E | F | G | H | J | K | L | M | N | P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AW2010-02 | 1/4" | 90 | 164.5 | 78 | 40 | 56.8 | 30 | 45 | 24 | 5.5 | 8.5 | 5 | 22 | 23 | 50 |
| AC4010-04 | 1/2" | 154 | 262.5 | 112 | 70 | 70.5 | 50 | 77 | 40 | 9 | 13 | 7 | 42.2 | 33 | 88 |
