Pressure Regulator
Pressure Regulator
The Pressure Regulator is designed to maintain and control air pressure for efficient pneumatic operation.
Its precise adjustment helps provide stable and consistent pressure throughout the system.
Built with durable construction, it ensures reliable performance across various industrial applications.
Compact and easy to install, it offers smooth operation, efficient control, and long-lasting service.
Specifications
Ordering Code

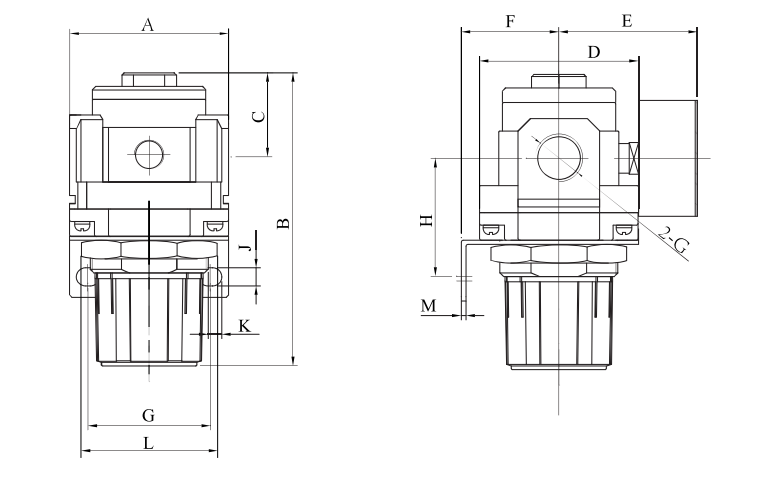

Dimensions
| MODEL | AR2000-02 | AR4000-04 |
|---|---|---|
| Proof Pressure | 1.5mpa (15.3kgf/cm²) | |
| Max. Working Pressure | 1.0mpa (10.2kgf/cm²) | |
| Environment and Fluid Temperature | 5~60°C | |
| Pressure Regulating Range | 0.05~0.85mpa (0.51~8.7kgf/cm²) | |
| AR | 2000 | 02 |
|---|---|---|
| Series | Shell Size 2000 4000 |
Thread 02:1/4" 04:1/2" |
| MODEL | Port Size (G) | A | B | C | D | E | F | G | H | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AR2000-02 | 1/4" | 40 | 95 | 17 | 40 | 56.8 | 30 | 34 | 44 | 5.4 | 15.4 | 55 | 2.3 | 33.5 |
| AR4000-04 | 1/2" | 70 | 149.5 | 37.5 | 70 | 65.5 | 50 | 54 | 54 | 8.5 | 10.5 | 70 | 2.3 | 52.5 |
