SS Round Cylinder (ISO 6432)
SS Round Cylinder (ISO 6432)
SS Round Cylinders are compact pneumatic actuators designed according to the ISO 6432 standard for reliable and consistent performance.
Constructed with stainless-steel components, they offer excellent corrosion resistance and durability in demanding environments. Their space-saving round design provides smooth linear motion and is suitable for automation, packaging, food processing, and general industrial applications.
Specifications
Ordering Code
Standard Stroke

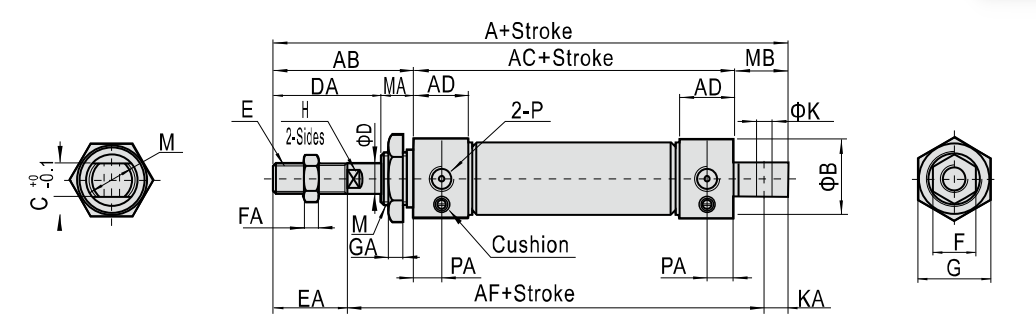

Dimensions
| Bore size(mm) | 16 | 20 | 25 | 32 | 40 |
|---|---|---|---|---|---|
| Acting type | Double acting | ||||
| Fluid | Air(to be filtered by 40μm filter element) | ||||
| Operating Pressure | 0.15~1.0MPa(22~145psi)(1.5~10.0bar) | ||||
| Proof pressure | 1.5MPa(22psi)(15bar) | ||||
| Temperature ℃ | -20~70 | ||||
| Speed range mm/s | Double acting : 30~800 Single acting : 50~800 | ||||
| Stroke tolerance |
0~150
+1.0
+0.1
0 150~200 +1.5 0 |
||||
| Port size (G-Thread) | M5×0.8 | 1/8" | |||
| NP321 | 20 | 50 | M |
|---|---|---|---|
| Series | Bore | Stroke | M: With Magnet |
|
Bore size (mm) |
Standard stroke (mm) |
Max.std stroke |
Max. stroke |
|---|---|---|---|
| 16 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 600 |
| 20 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 800 |
| 25 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 800 |
| 32 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 800 |
| 40 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 800 |
| Bore size\Item | A | AB | AC | AD | AF | B | C | D | DA | E | EA | F | FA | G | GA | H | K | KA | M | MA | MB | P | PA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 114 | 38 | 60 | 12.5 | 91 | 21 | 12 | 6 | 22 | M6×1.0 | 16 | 10 | 5 | 22 | 6 | 5 | 6 | 7 | M16×1.5 | 16 | 16 | M5×0.8 | 7.5 |
| 20 | 137 | 40 | 76 | 16 | 108 | 27 | 16 | 8 | 28 | M8×1.25 | 20 | 12 | 6 | 29 | 7 | 6 | 8 | 9 | M22×1.5 | 12 | 21 | 1/8" | 8 |
| 25 | 141 | 44 | 76 | 16 | 110 | 30 | 16 | 10 | 30 | M10×1.25 | 22 | 17 | 6 | 29 | 7 | 8 | 8 | 9 | M22×1.5 | 14 | 21 | 1/8" | 8 |
| 32 | 147 | 44 | 76 | 16 | 113 | 35 | 16 | 12 | 30 | M10×1.25 | 22 | 17 | 6 | 32 | 8 | 10 | 10 | 12 | M24×2.0 | 14 | 27 | 1/8" | 8 |
| 40 | 149 | 46 | 76 | 16.5 | 113 | 41.5 | 20 | 16 | 32 | M12×1.25 | 24 | 17 | 7 | 41 | 8 | 14 | 12 | 12 | M30×2.0 | 14 | 27 | 1/8" | 9 |
