Hand Lever Valve (4/2 Way)
Hand Lever Valve (4/2 Way)
The Hand Lever Valve (4/2 Way) is designed for reliable manual control of pneumatic air flow.
Its ergonomic lever enables smooth and precise directional switching during operation.
Durable construction ensures consistent performance across various industrial applications.
Ideal for pneumatic systems, it offers easy operation, dependable control, and long-lasting service.
Ordering Code

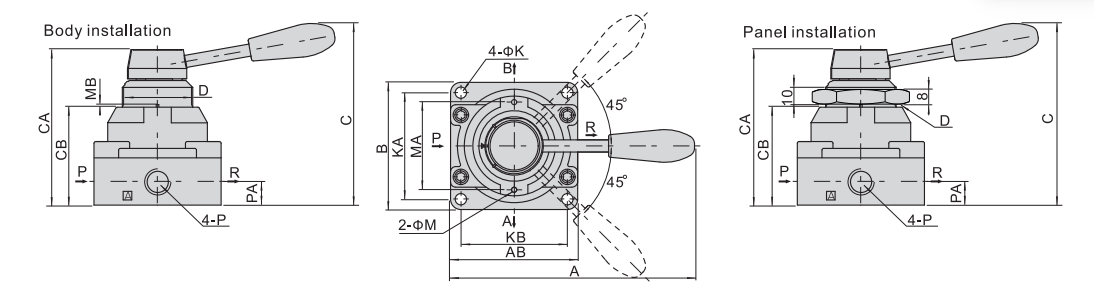

Dimensions
| 4HV | 3 | 30 | 10 |
|---|---|---|---|
| Model | Code 3:300 Series |
Valve Type 30:4 Port 3 Position |
Port Size Thread 10:3/8" |
| Model\Item | A | AB | AC | B | C | CA | D | K | KA | KB | M | MA | MB | P | PA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4HV330-10 | 140 | 74 | 74 | 104 | 88.5 | 56 | M40x1.5 | 6.5 | 62 | 62 | 3 | 51 | 1.5 | 3/8" | 13.5 |
