One Touch Fitting With G-Thread (NPC)
One Touch Fitting With G-Thread (NPC)

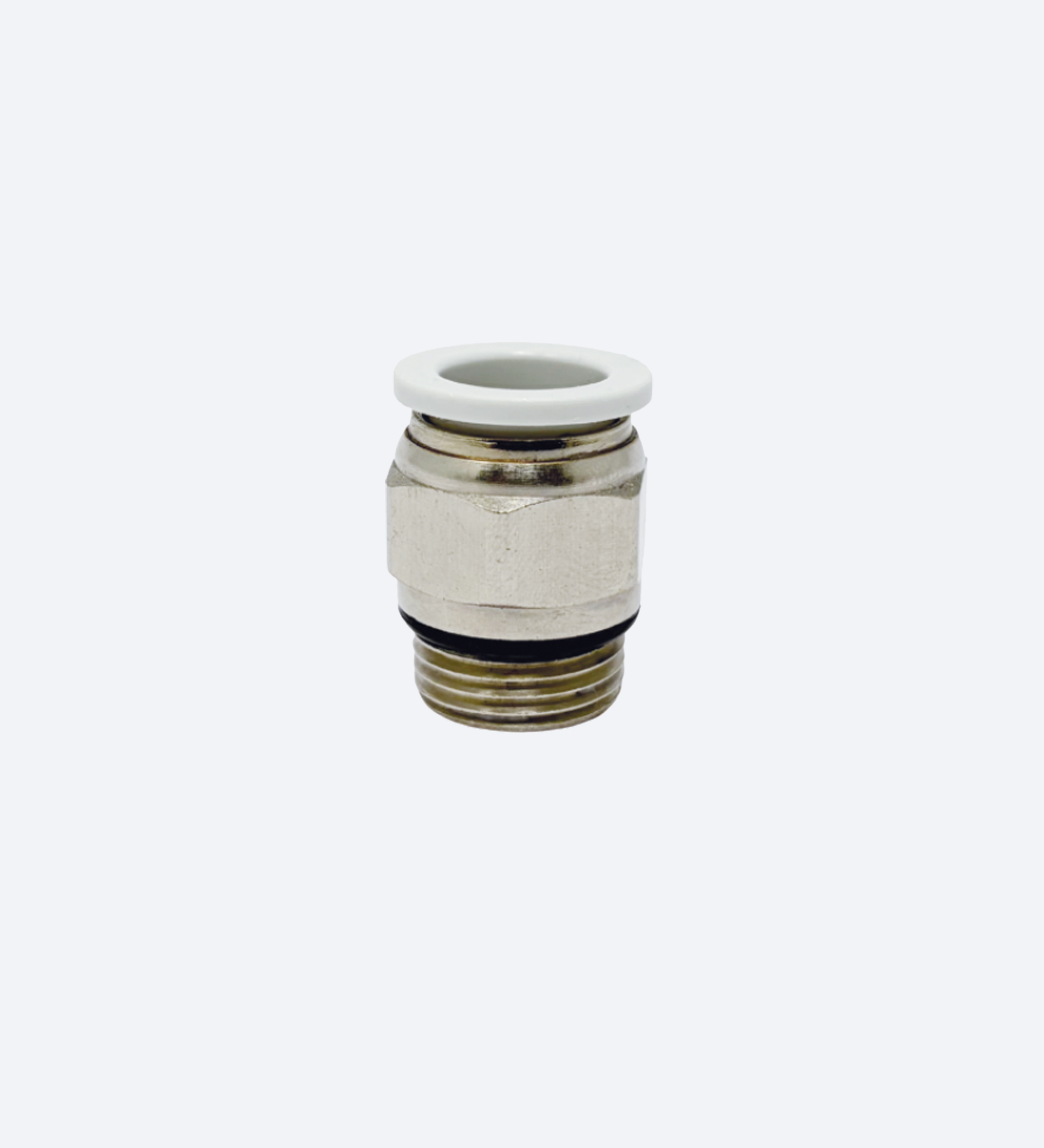

The One Touch Fitting With G-Thread (NPC) is designed for quick and reliable pneumatic tube connections.
Its push-in design allows easy installation and removal without requiring special tools.
Precision-engineered construction provides secure connections, smooth airflow, and excellent leak resistance.
Ideal for pneumatic systems, it offers durability, convenience, and dependable long-term performance.

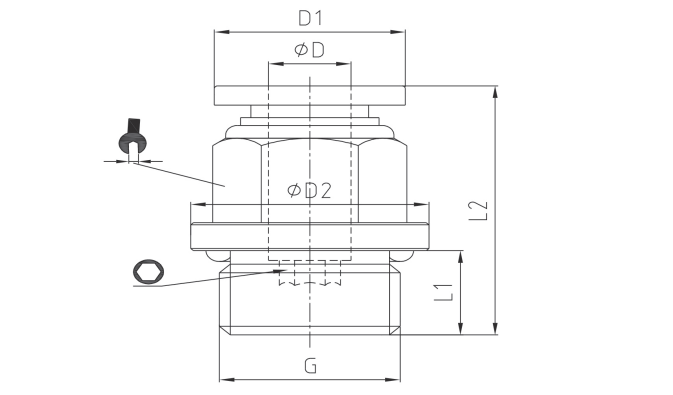

Dimensions
| MODEL | D | G | L1 | L2 | D2 | ♟ | O |
|---|---|---|---|---|---|---|---|
| NPC04-M5 | 4 | M5 | 3.5 | 18.5 | 20.3 | 8 | 2 |
| NPC04-01 | 4 | G1/8 | 5 | 18 | 14 | 10 | 3 |
| NPC04-02 | 4 | G1/4 | 6 | 18 | 17 | 10 | 3 |
| NPC06-M5 | 6 | M5 | 3.5 | 18 | 20.8 | 10 | 2 |
| NPC06-01 | 6 | G1/8 | 5 | 20 | 14 | 12 | 7 |
| NPC06-02 | 6 | G1/4 | 6 | 20 | 17 | 12 | 6 |
| NPC06-03 | 6 | G3/8 | 8 | 20 | 20 | 12 | 6 |
| NPC06-04 | 6 | G1/2 | 8 | 21 | 24 | 12 | 6 |
| NPC08-01 | 8 | G1/8 | 5 | 23 | 14 | 14 | 6 |
| NPC08-02 | 8 | G1/4 | 6 | 21 | 17 | 14 | 10 |
| NPC08-03 | 8 | G3/8 | 8 | 21 | 20 | 14 | 7 |
| NPC08-04 | 8 | G1/2 | 8 | 22 | 24 | 14 | 7 |
| NPC10-01 | 10 | G1/8 | 5 | 24 | 14 | 17 | 6 |
| NPC10-02 | 10 | G1/4 | 7 | 25 | 17 | 17 | 9 |
| NPC10-03 | 10 | G3/8 | 8 | 25 | 20 | 17 | 9 |
| NPC10-04 | 10 | G1/2 | 8 | 26 | 24 | 17 | 9 |
| NPC12-01 | 12 | G1/8 | 5 | 26 | 14 | 19 | 6 |
| NPC12-02 | 12 | G1/4 | 6 | 27 | 17 | 19 | 9 |
| NPC12-03 | 12 | G3/8 | 8 | 27 | 20 | 21 | 12 |
| NPC12-04 | 12 | G1/2 | 8 | 26 | 24 | 20 | 9 |
