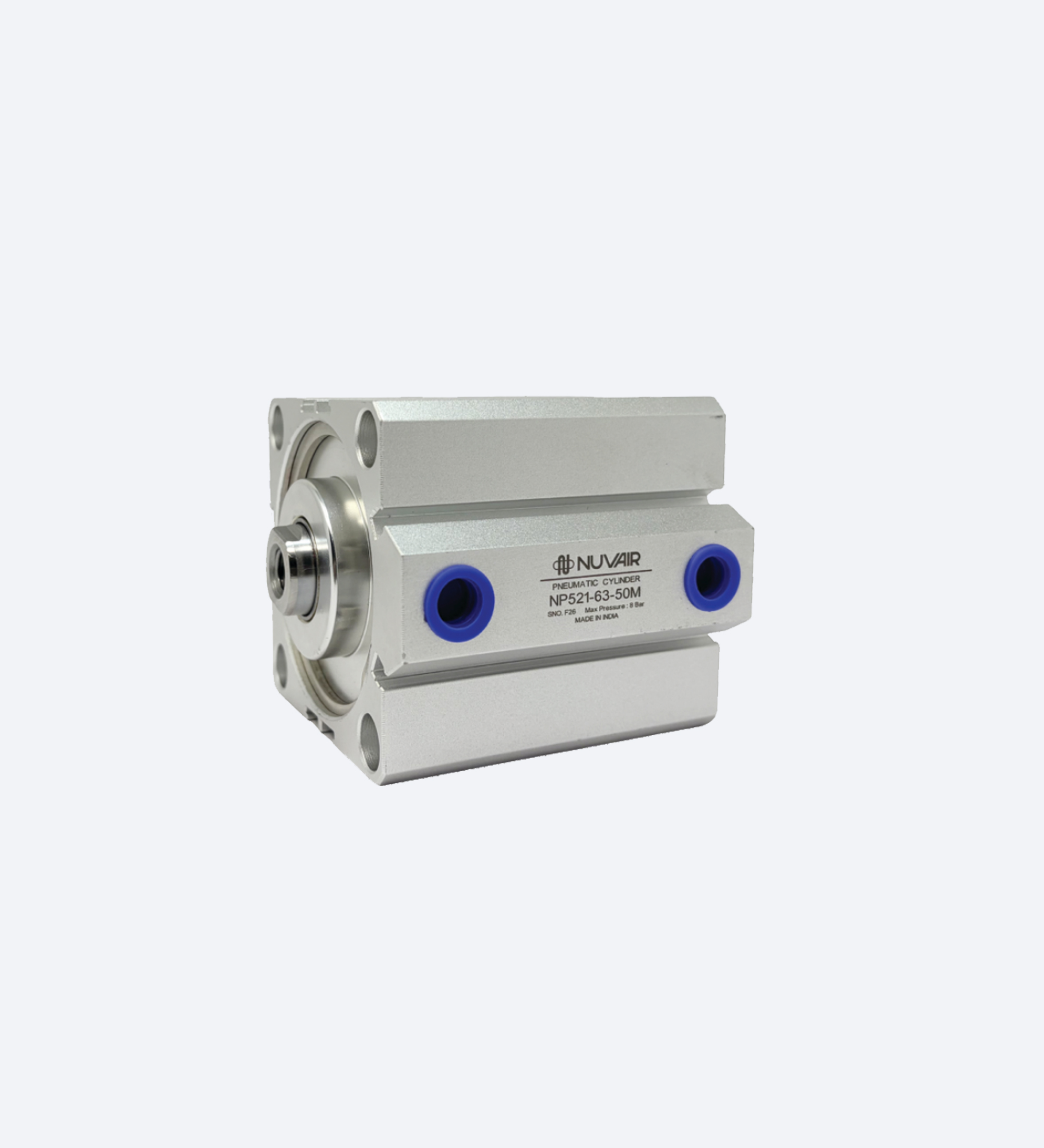

Compact Cylinder
Compact Cylinder
The Compact Cylinder is designed for efficient performance in a space-saving form. Its compact construction makes it ideal for installations where space is limited.
Built for reliable operation, it offers durability and consistent performance. A practical solution for applications requiring efficiency, convenience, and easy handling.
Specifications
Ordering Code
Standard Stroke

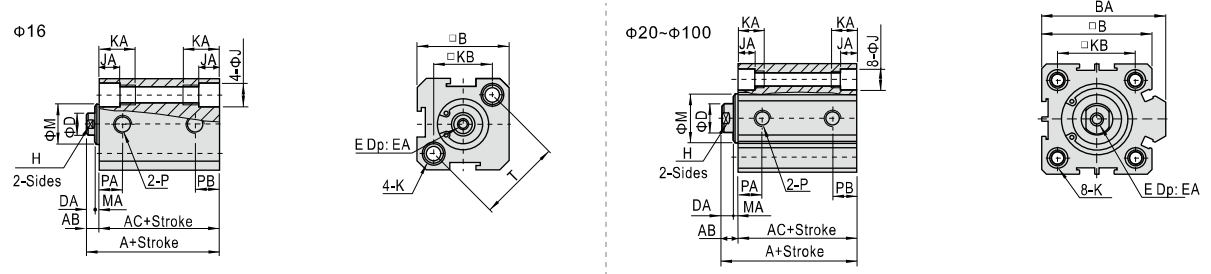

Dimensions
| Bore size(mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 |
|---|---|---|---|---|---|---|---|---|---|
| Acting type |
Double acting
Single acting_Push type , Single acting_Pull type |
||||||||
| Fluid | Air(to be filtered by 40μm filter element) | ||||||||
|
Operating pressure |
Double acting | 0.15~1.0MPa(22~145psi)(1.5~10.0bar) | |||||||
| Single acting | 0.2~1.0MPa(28~145psi)(2.0~10.0bar) | ||||||||
| Proof pressure | 1.5MPa(215psi)(15bar) | ||||||||
| Temperature ℃ | -20~70 | ||||||||
| Speed range mm/s | Double acting : 30~500 Single acting : 50~500 | ||||||||
| Stroke tolerance | Stroke≤100 +1.0 0 Stroke>100 +1.5 0 | ||||||||
| Cushion type | Bumper | ||||||||
| Port size (G-Thread) | M5×0.8 | 1/8" | 1/4" | 3/8" | |||||
| NP521 | 20 | 50 | M |
|---|---|---|---|
| Series | Bore | Stroke | M: With Magnet |
| Bore size (mm) | Standard stroke (mm) |
Max.std stroke |
|---|---|---|
| 16 | Double acting 5 10 15 20 25 30 35 40 45 50 | 80 |
| Single acting 5 10 15 20 25 30 | 30 | |
| 20 | Double acting 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 | 130 |
| Single acting 5 10 15 20 25 30 | 30 | |
| 25 32 40 50 63 | Double acting 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 100 110 120 | 150 |
| Single acting 5 10 15 20 25 30 | 30 | |
|
80 100 |
Double acting 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 100 110 120 | 150 |
| Item | A | AC | AB | B | BA | D | DA | E | EA | H | J | JA | K | KA | KB | M | MA | P | PA | PB | T | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| With magnet | ST=5 | ST>5 | ST=5 | ST>5 | |||||||||||||||||||
| 16 | 34 | 28.5 | 5.5 | 29 | - | 6 | 4 | M3×0.5 | 6 | 5 | 6.5 | 4.5 | M5×0.8Thru.holeΦ4.2 | 12 | 19.8 | 11 | 1.5 | M5×0.8 | 8 | 5 | 5 | 5 | 28 |
| 20 | 35 | 29.5 | 5.5 | 34 | 36 | 8 | 4 | M4×0.7 | 8 | 6 | 6.5 | 4.5 | M5×0.8Thru.holeΦ4.2 | 14 | 24 | 13 | 1.5 | M5×0.8 | 8 | 9 | 5 | 5 | - |
| 25 | 37 | 31 | 6 | 40 | 42 | 10 | 4 | M5×0.8 | 10 | 8 | 8.2 | 5.5 | M6×1.0Thru.holeΦ5.2 | 15 | 28 | 17 | 2 | M5×0.8 | 9 | 9 | 5.5 | 5.5 | - |
| 32 | 41.5 | 34.5 | 7 | 44 | 50 | 12 | 4.5 | M6×1.0 | 12 | 10 | 8.2 | 5.5 | M6×1.0Thru.holeΦ5.2 | 16 | 34 | 22 | 2.5 | 1/8" | 9 | 9 | 6.5 | 9 | - |
| 40 | 43 | 36 | 7 | 52 | 58.5 | 16 | 4 | M8×1.25 | 12 | 14 | 10.5 | 6 | M8×1.25Thru.holeΦ6.7 | 20 | 40 | 28 | 3 | 1/8" | 9.5 | 9.5 | 7.5 | 7.5 | - |
| 50 | 47 | 38 | 9 | 62 | 71.5 | 20 | 5 | M10×1.5 | 15 | 17 | 10.5 | 6.5 | M8×1.25Thru.holeΦ6.7 | 25 | 48 | 38 | 4 | 1/4" | 10 | 10.5 | 10.5 | 10.5 | - |
| 63 | 51 | 42 | 9 | 75 | 84.5 | 20 | 5 | M10×1.5 | 15 | 17 | 10.5 | 6.5 | M8×1.25Thru.holeΦ6.7 | 25 | 60 | 40 | 4 | 1/4" | 9.5 | 12 | 9.5 | 11 | - |
| 80 | 62 | 51 | 11 | 94 | 104 | 25 | 6 | M14×1.5 | 20 | 22 | 17 | 11 | M12×1.75Thru.holeΦ10.4 | 25 | 74 | 45 | 5 | 3/8" | 11.5 | 14.5 | 11.5 | 14.5 | - |
| 100 | 73 | 61 | 12 | 114 | 124 | 32 | 7 | M18×1.5 | 20 | 27 | 19 | 13 | M14×2.0Thru.holeΦ12.4 | 30 | 90 | 55 | 5 | 3/8" | 16 | 20.5 | 16 | 20.5 | - |
