Profile Cylinder (ISO 15552)

Profile Cylinders (ISO 15552) are standardized pneumatic actuators designed for high-performance industrial automation. Built with a robust profile body and precision-engineered components, they provide smooth linear motion, high durability, and reliable operation. Their ISO-compliant design ensures easy interchangeability, simple installation, and compatibility with a wide range of automation systems across industries such as manufacturing, packaging, automotive, and material handling.

Specifications

Ordering Code

Standard Stroke

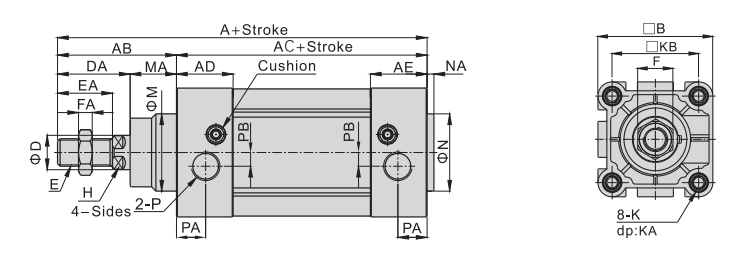

Dimensions

Bore size (mm)	32	40	50	63	80	100	125
Acting type	Double acting
Fluid	Air (to be filtered by 40µm filter element)
Operating pressure	0.15~1.0 MPa (22~145 psi) (1.5~10.0 bar)
Proof pressure	1.5 MPa (215 psi) (15 bar)
Temperature °C	-20~70
Speed range m/s	30~800						30~500
Stroke tolerance	0~250^+1.0 ⁰			251~1000^+1.5 ⁰	1001~1500^+2.0 ⁰	0
Cushion type	Variable cushion
Adjustable cushion stroke	27			30	36		40
Port size G-Thread	1/8"	1/4"		3/8"		1/2"

NP121	50	75	M
Series	Bore	Stroke	M: With Magnet

Bore size (mm)	Standard stroke (mm)	Max.std stroke	Max. stroke
32	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500	1000	1800
40	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800	1200	1800
50	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1200	1800
63	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
80	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
100	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
125	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800

Note : Please contact the company for other special strokes.

Bore size\Item	A	AB	AC	AD	AE	B	D	DA	E	EA	F	FA	H	K	KA	KB	M	MA	NA	N	P	PA	PB
32	142	48	94	27.5	27.5	46.5	12	29	M10×1.25	22	17	6	10	M6	16	32.5	30	19	3	30	1/8"	13.5	6
40	159	54	105	32	32	54	16	33	M12×1.25	24	17	7	13	M6	17	38	35	21	3.5	35	1/4"	17.5	6
50	175	69	106	31	31	64	20	42	M16×1.5	32	23	8	17	M8	17	46.5	40	27	3.5	40	1/4"	14	8
63	190	69	121	33	33	75	20	42	M16×1.5	32	23	8	17	M8	17	56.5	45	27	4	45	3/8"	17	8
80	214	86	128	33	33	93	25	53	M20×1.5	40	26	10	22	M10	19	72	45	33	4	45	3/8"	16.5	8
100	229	91	138	37	37	110	25	55	M20×1.5	40	26	10	22	M10	19	89	55	36	4	55	1/2"	19.5	10
125	279	119	160	46	46	134	32	74	M27×2	54	41	13.5	27	M12	22	110	60	45	4	60	1/2"	23	11
