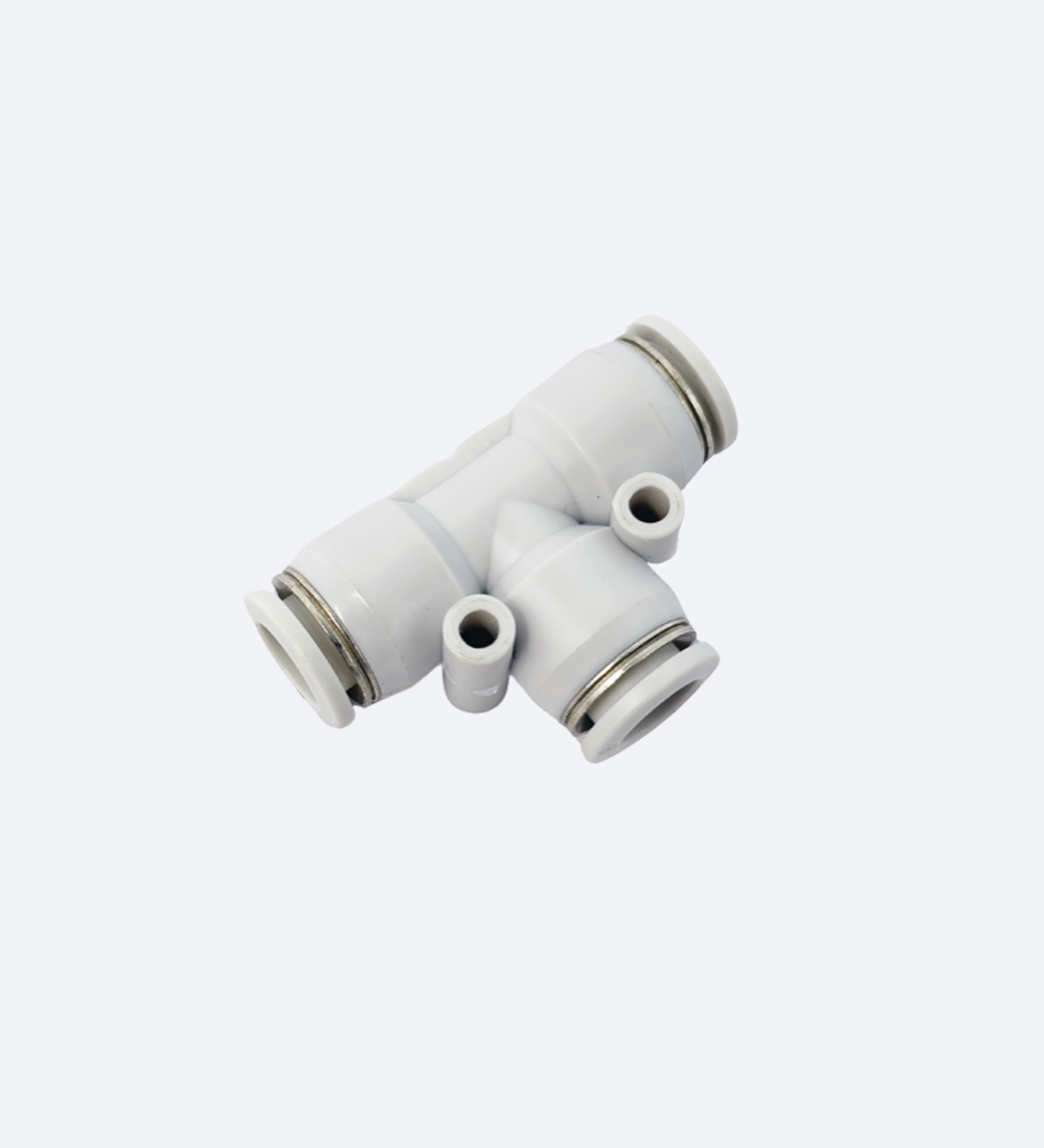

One Touch Fitting With G-Thread (NPE)
One Touch Fitting With G-Thread (NPE)
The One Touch Fitting With G-Thread (NPE) is designed for quick and secure pneumatic tube connections.
Its push-in design enables easy installation and removal, making maintenance simple and efficient.
Precision-engineered construction ensures reliable sealing, smooth airflow, and leak-resistant performance.
Ideal for pneumatic systems, it offers durability, convenience, and dependable long-term service.

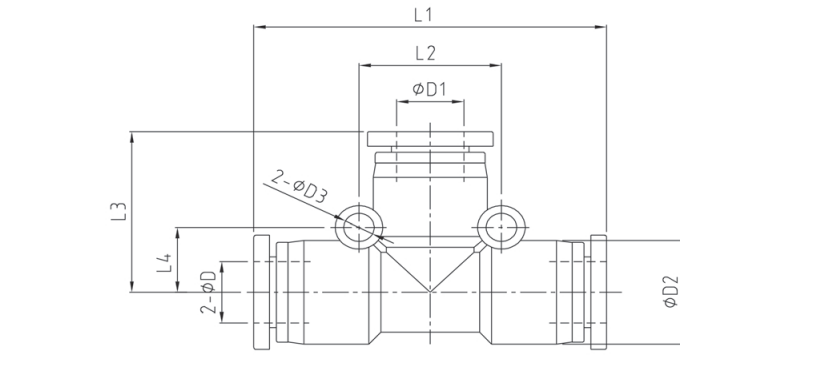

Dimensions
| MODEL | D | D2 | L1 | L3 | D3 | L2 | L4 |
|---|---|---|---|---|---|---|---|
| NPE04 | 4 | 11 | 35.5 | 18.8 | 3.2 | 14 | 7 |
| NPE06 | 6 | 13 | 40 | 19.3 | 3.2 | 16 | 8 |
| NPE08 | 8 | 15 | 44 | 22.8 | 3.2 | 18 | 9 |
| NPЕ10 | 10 | 18.7 | 53 | 28.7 | 4.2 | 24 | 12 |
| NPE12 | 12 | 21 | 57 | 29.8 | 4.2 | 27 | 13.5 |
