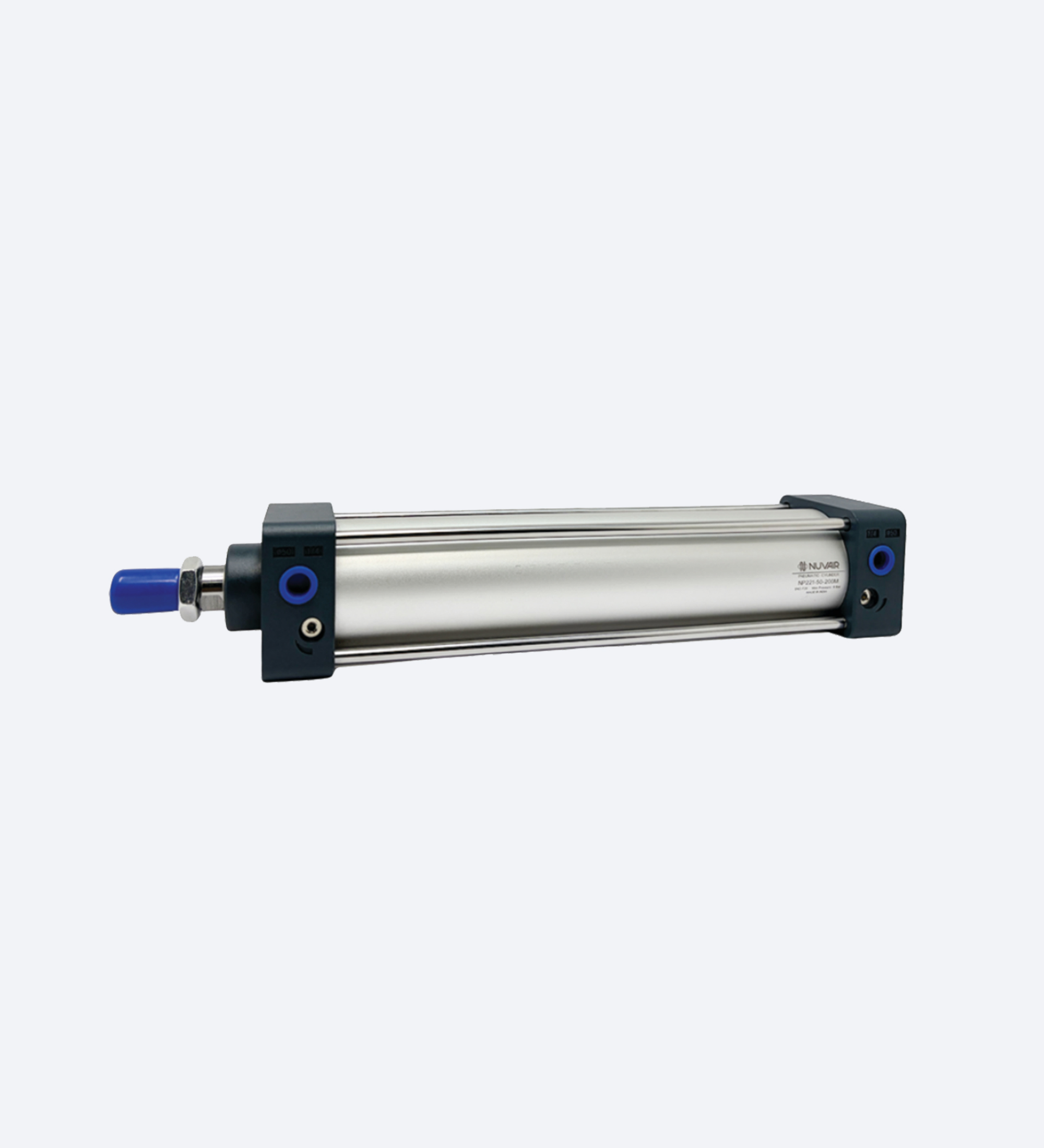

Tie Rod Cylinders are robust pneumatic actuators designed for reliable and controlled linear motion in industrial applications. Their durable tie-rod construction provides excellent stability and strength during continuous operation.
Available in double-acting configurations, they deliver smooth and controlled extension and retraction using compressed air. Ideal for automation, material handling, clamping, assembly, and other demanding machine applications.
Specifications
Ordering Code
Standard Stroke
Dimensions
| Bore size (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 |
|---|---|---|---|---|---|---|---|
| Acting type | Double acting | ||||||
| Fluid | Air (to be filtered by 40μm filter element) | ||||||
| Operating pressure | 0.15~1.0MPa (22~145psi) (1.5~10.0bar) | ||||||
| Proof pressure | 1.5MPa (22psi) (15bar) | ||||||
| Temperature ℃ | -20~70 | ||||||
| Speed range mm/s | 30~800 | ||||||
| Stroke tolerance |
0~250
+1.0
0 |
251~1000
+1.5
0 |
1001~1500
+2.0
0 |
||||
| Cushion type | Variable cushion | ||||||
| Adjustable cushion stroke | 20 | ||||||
| Port size G-Thread | 1/8" | 1/4" | 3/8" | 1/2" | |||
| NP221 | 50 | 50 | M |
|---|---|---|---|
| Series | Bore | Stroke | M: With Magnet |
| Bore size (mm) |
Standard stroke (mm) | Max.std stroke |
Max. stroke |
|---|---|---|---|
| 32 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 1000 | 1800 |
| 40 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 | 1200 | 1800 |
| 50 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1200 | 1800 |
| 63 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 1800 |
| 80 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 1800 |
| 100 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 1800 |
| 125 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 1800 |
Note : Please contact the company for other special strokes.

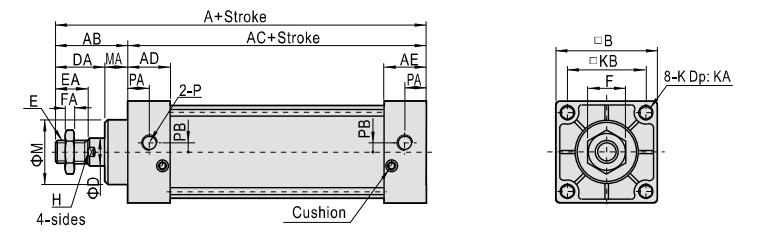

| Bore size\Item | A | AB | AC | AD | AE | B | D | DA | E | EA | F | FA | H | K | KA | KB | M | MA | NA | N | P | PA | PB |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32 | 142 | 48 | 94 | 27.5 | 27.5 | 46.5 | 12 | 29 | M10×1.25 | 22 | 17 | 6 | 10 | M6 | 16 | 32.5 | 30 | 19 | 3 | 30 | 1/8" | 13.5 | 6 |
| 40 | 159 | 54 | 105 | 32 | 32 | 54 | 16 | 33 | M12×1.25 | 24 | 17 | 7 | 13 | M6 | 17 | 38 | 35 | 21 | 3.5 | 35 | 1/4" | 17.5 | 6 |
| 50 | 175 | 69 | 106 | 31 | 31 | 64 | 20 | 42 | M16×1.5 | 32 | 23 | 8 | 17 | M8 | 17 | 46.5 | 40 | 27 | 3.5 | 40 | 1/4" | 14 | 8 |
| 63 | 190 | 69 | 121 | 33 | 33 | 75 | 20 | 42 | M16×1.5 | 32 | 23 | 8 | 17 | M8 | 17 | 56.5 | 45 | 27 | 4 | 45 | 3/8" | 17 | 8 |
| 80 | 214 | 86 | 128 | 33 | 33 | 93 | 25 | 53 | M20×1.5 | 40 | 26 | 10 | 22 | M10 | 19 | 72 | 45 | 33 | 4 | 45 | 3/8" | 16.5 | 8 |
| 100 | 229 | 91 | 138 | 37 | 37 | 110 | 25 | 55 | M20×1.5 | 40 | 26 | 10 | 22 | M10 | 19 | 89 | 55 | 36 | 4 | 55 | 1/2" | 19.5 | 10 |
| 125 | 279 | 119 | 160 | 46 | 46 | 134 | 32 | 74 | M27×2 | 54 | 41 | 13.5 | 27 | M12 | 22 | 110 | 60 | 45 | 4 | 60 | 1/2" | 23 | 11 |
