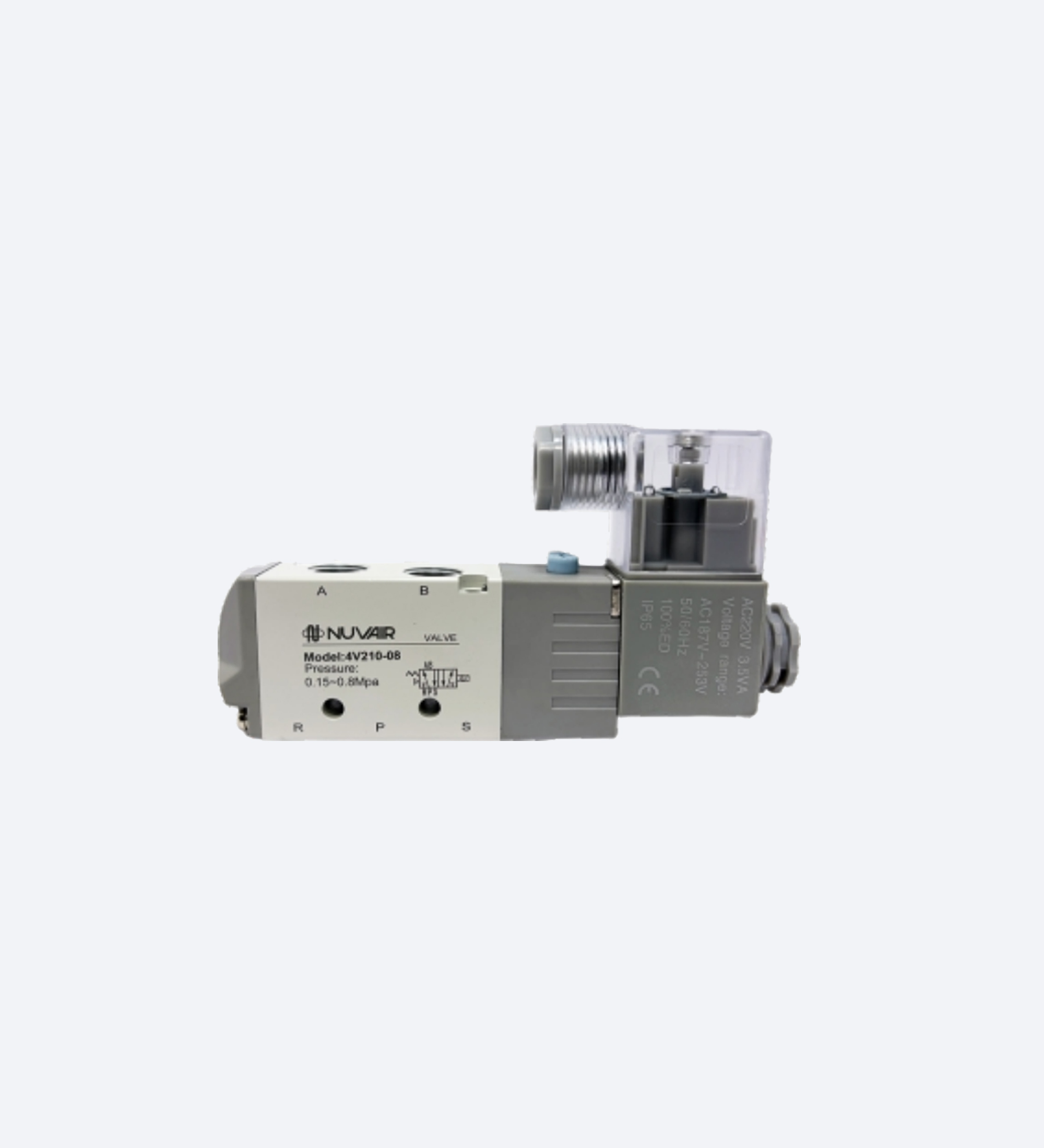

5/2 Way Solenoid Valve (4V 210)
3/2 Way Solenoid Valve (4v210)
The 5/2 Way Solenoid Valve (4V 210) is designed for efficient and precise pneumatic flow control.
Its compact construction makes it suitable for various industrial and automation applications.
It provides quick response, reliable switching, and consistent performance during operation.
Built for durability, it offers easy installation and dependable long-term functionality.
Specifications
Ordering Code
Coil Specifications

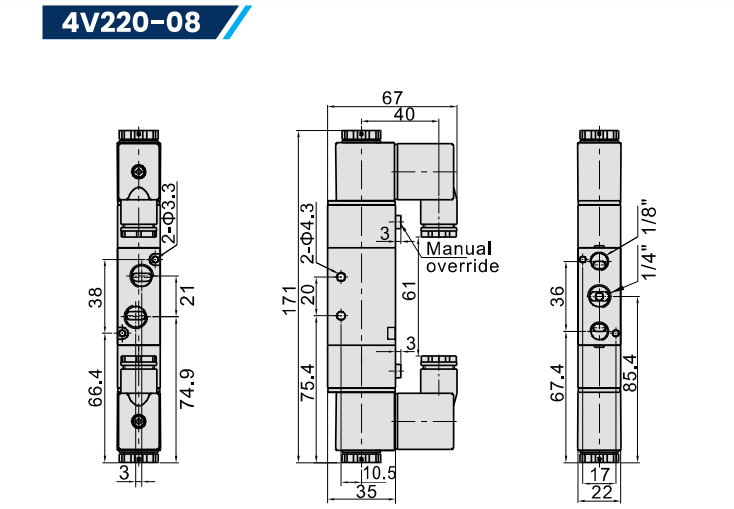

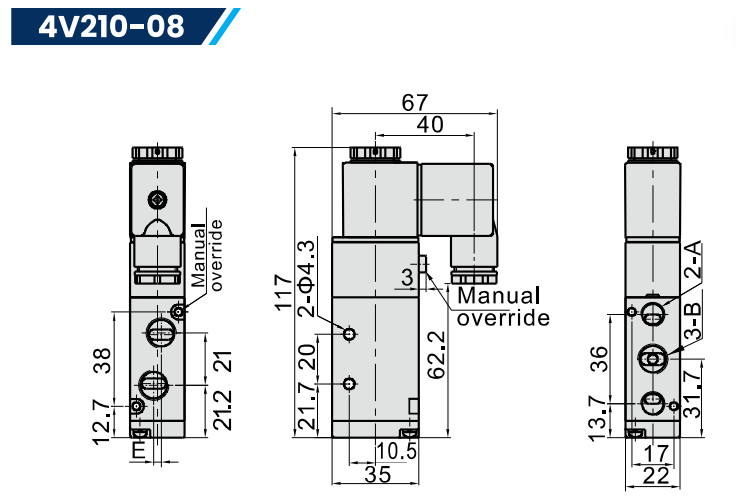

Dimensions
| MODEL | 4V110-06 | 4V210-08 | 4V220-08 | 4V410-15 | ||
|---|---|---|---|---|---|---|
| Fluid | Air (to be filtered by 40 μm filter element) | |||||
| Acting | Internal pilot | |||||
| Valve Type | 5 Port 2 position | 5 Port 3 position | ||||
| Lubrication | Not required | |||||
| Operating Pressure | 0.15~0.8MPa (21~114psi) | |||||
| Proof Pressure | 1.2MPa (175psi) | |||||
| Temperature | -20~70°C | |||||
| Material of Body | Aluminium alloy | |||||
| 4V | 1 | 10 | 06 |
|---|---|---|---|
| Model | Code 1:100 Series 2:200 Series 4:400 Series |
Valve 10: Single Solenoid 20: Double Solenoid 30c: Double Solenoid 5/3 Centre Closed |
Port Size 06:1/8" 08:1/4" 15:1/2" |
| ITEM | Specification | ||||
|---|---|---|---|---|---|
| Standard voltage | AC 220V | AC 110V | AC 24V | DC 24V | DC 12V |
| Scope of voltage | AC: ±15% DC: ±10% | ||||
| Power consumption | 3.5VA | 3.5VA | 4.0VA | 2.8VA | 2.5VA |
| Protection | IP65(DIN40050) | ||||
| Temperature classification | B Class | ||||
| Electrical entry | Terminal | ||||
| Activating time | 0.05 sec and below | ||||
| Max. frequency | 5 cycles/sec | ||||
