5/3 Way Solenoid Valve (4V 230C)
3/2 Way Solenoid Valve (4v230)

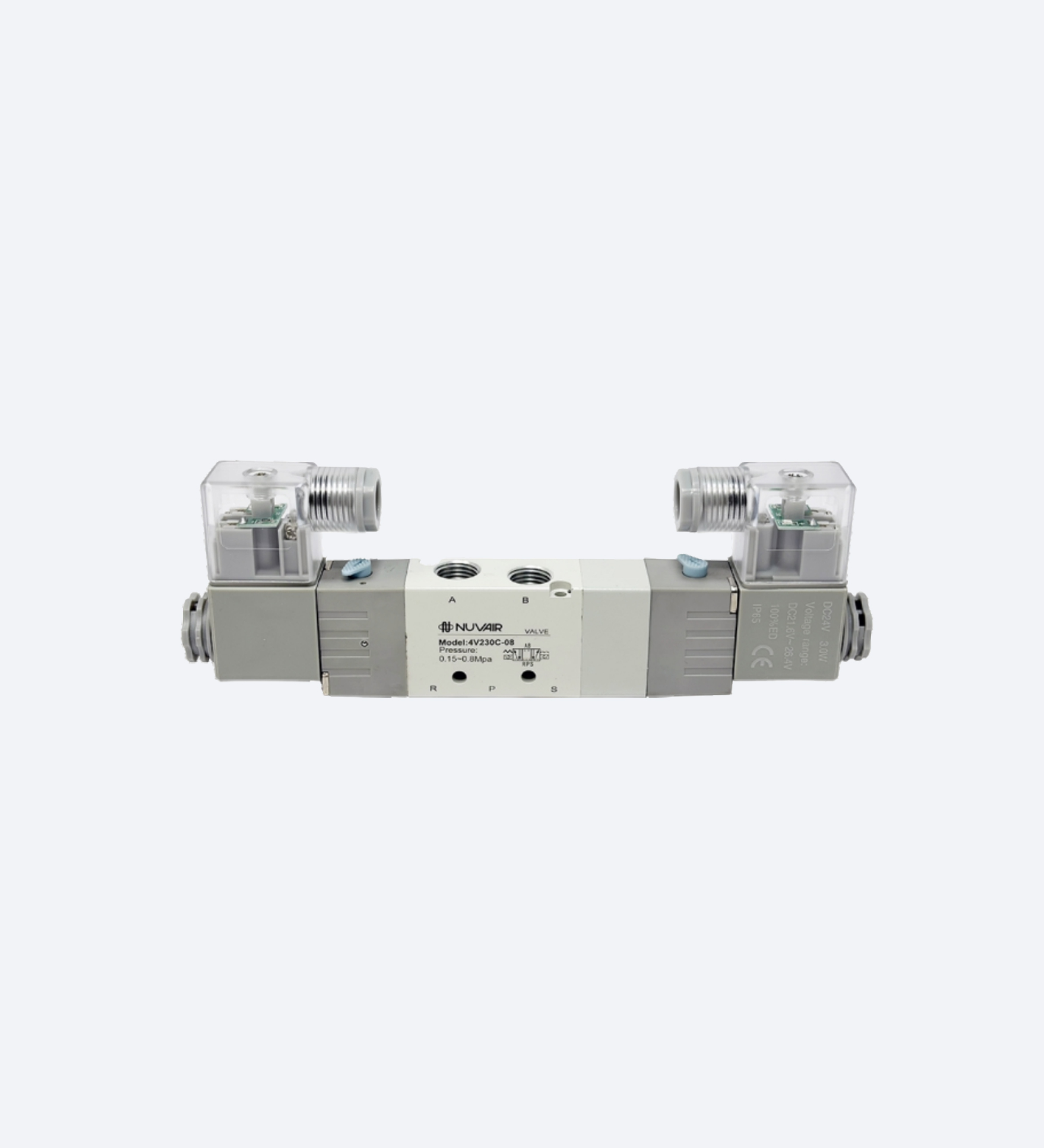

The 5/3 Way Solenoid Valve
(4V 230C) is designed for precise and efficient pneumatic flow control.
Its durable construction ensures reliable switching and consistent performance in industrial applications.
With quick response and smooth operation, it supports efficient automation and air-control systems.
Compact and easy to install, it provides dependable performance for various pneumatic applications.
Specifications
Ordering Code
Coil Specifications

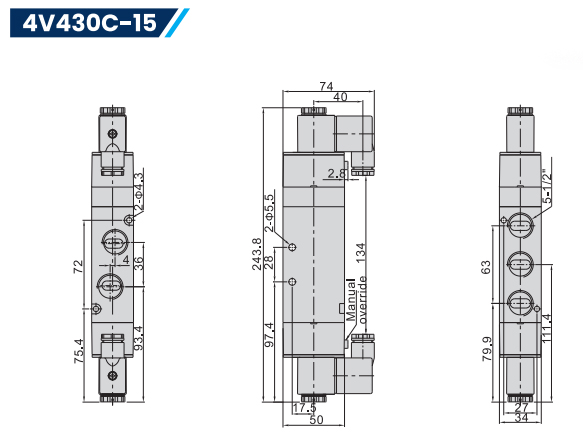

Dimensions
| MODEL | 4V230C-08 | 4V430C-15 | ||||
|---|---|---|---|---|---|---|
| Fluid | Air (to be filtered by 40 μm filter element) | |||||
| Acting | Internal pilot | |||||
| Valve Type | 5 Port 2 position | 5 Port 3 position | ||||
| Lubrication | Not required | |||||
| Operating Pressure | 0.15~0.8MPa (21~114psi) | |||||
| Proof Pressure | 1.2MPa (175psi) | |||||
| Temperature | -20~70°C | |||||
| Material of Body | Aluminium alloy | |||||
| 4V | 1 | 10 | 06 |
|---|---|---|---|
| Model | Code 1:100 Series 2:200 Series 4:400 Series |
Valve 10: Single Solenoid 20: Double Solenoid 30c: Double Solenoid 5/3 Centre Closed |
Port Size 06:1/8" 08:1/4" 15:1/2" |
| ITEM | Specification | ||||
|---|---|---|---|---|---|
| Standard voltage | AC 220V | AC 110V | AC 24V | DC 24V | DC 12V |
| Scope of voltage | AC: ±15% DC: ±10% | ||||
| Power consumption | 3.5VA | 3.5VA | 4.0VA | 2.8VA | 2.5VA |
| Protection | IP65(DIN40050) | ||||
| Temperature classification | B Class | ||||
| Electrical entry | Terminal | ||||
| Activating time | 0.05 sec and below | ||||
| Max. frequency | 5 cycles/sec | ||||
