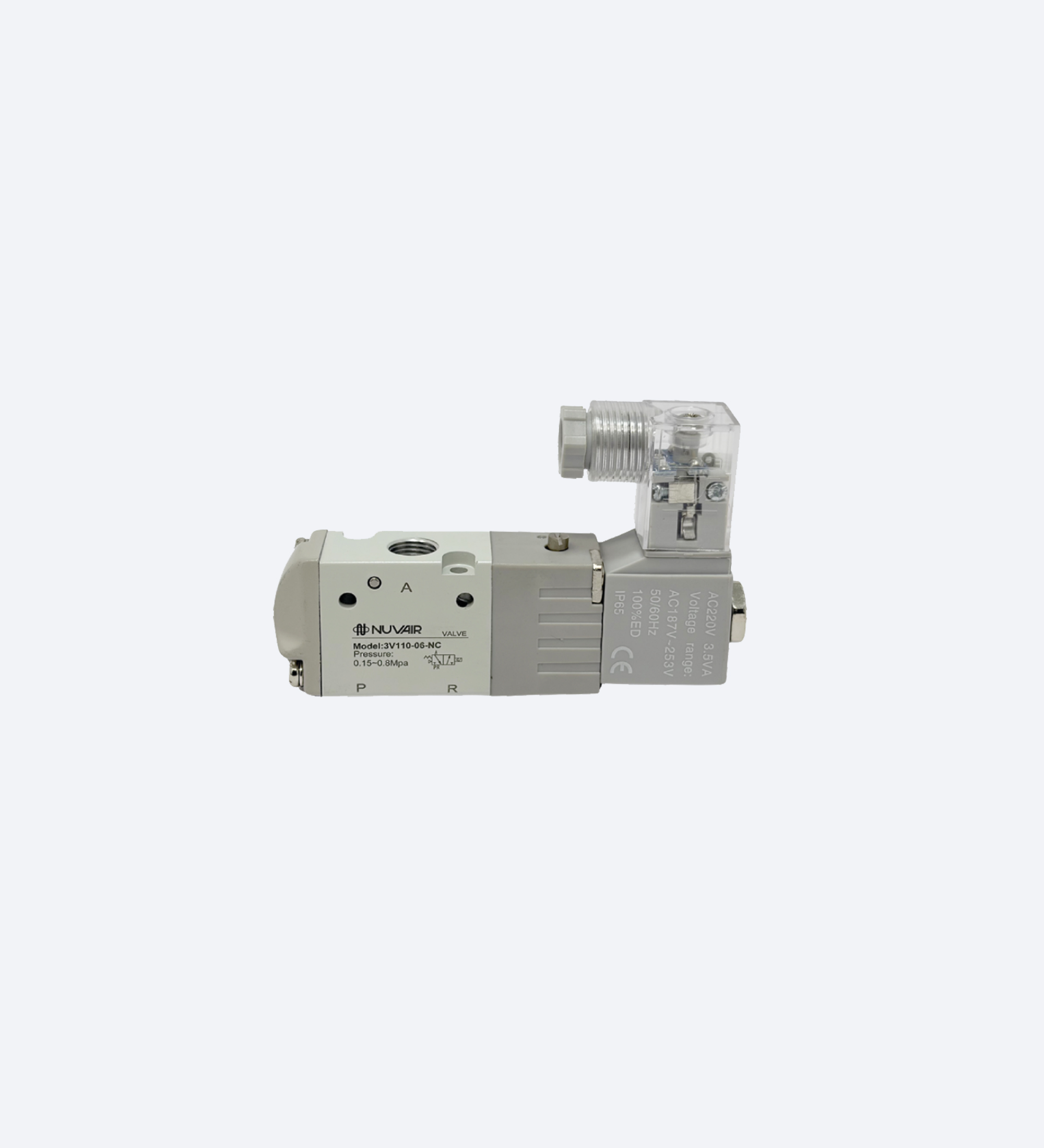

3/2 Way Solenoid Valve
3/2 Way Solenoid Valve
The 3/2 Way Solenoid Valve is designed for precise and reliable control of fluid or air flow.
Its compact design makes it suitable for a wide range of pneumatic and industrial applications.
Engineered for quick response and consistent operation, it supports efficient system performance.
Durable construction ensures dependable functionality and easy integration into various setups.
Specifications
Ordering Code
Coil Specifications

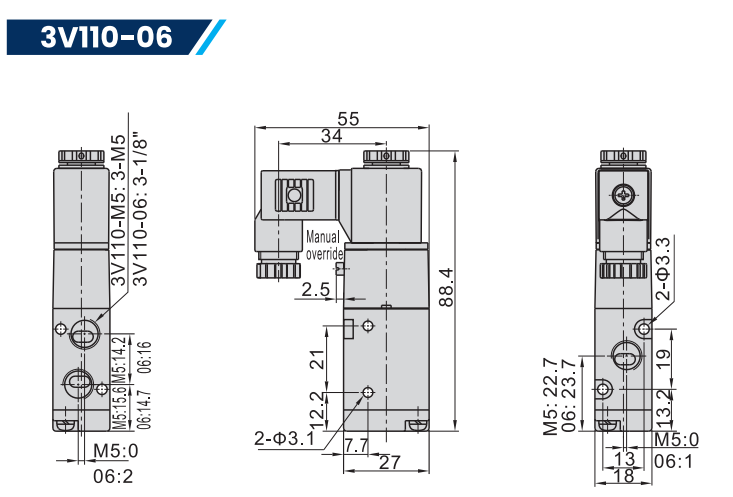

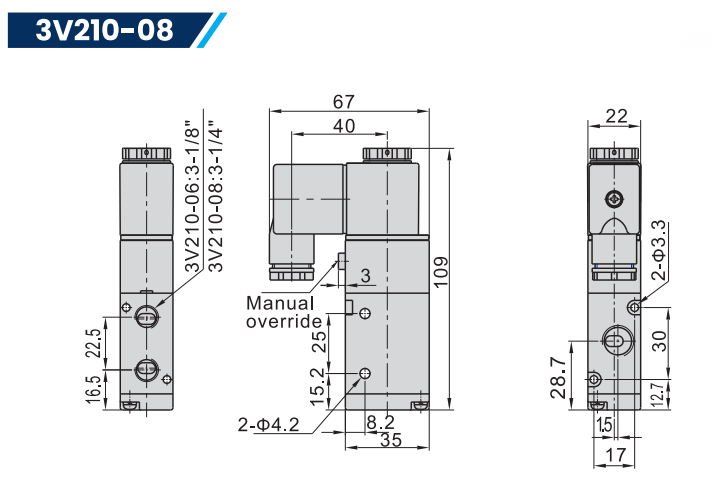

Dimensions
| MODEL | 3V110-06 | 3V210-08 |
|---|---|---|
| Fluid | Air (to be filtered by 40 μm filter element) | |
| Acting | Internal pilot | |
| Valve Type | 3 port 2 position | |
| Lubrication | Not required | |
| Operating Pressure | 0.15~0.8MPa (21~114psi) | |
| Proof Pressure | 1.2MPa (175psi) | |
| Temperature | -20~70°C | |
| Material of Body | Aluminium alloy | |
| 3V | 1 | 10 | M |
|---|---|---|---|
| Series | Code 1:100 Series 2:200 Series |
Valve 10: Single Solenoid 20: Double Solenoid |
Port Size Thread 06:1/8" 08:1/4" |
| ITEM | Specification | ||||
|---|---|---|---|---|---|
| Standard voltage | AC 220V | AC 110V | AC 24V | DC 24V | DC 12V |
| Scope of voltage | AC: ±15% DC: ±10% | ||||
| Power consumption | 3.5VA | 3.5VA | 4.0VA | 2.8VA | 2.5VA |
| Protection | IP65(DIN40050) | ||||
| Temperature classification | B Class | ||||
| Electrical entry | Terminal | ||||
| Activating time | 0.05 sec and below | ||||
| Max. frequency | 5 cycles/sec | ||||
