Hand Lever Valve (5/2 Way)
Hand Lever Valve (5/2 Way)
The Hand Lever Valve (5/2 Way) is designed for manual and reliable control of pneumatic air flow.
Its ergonomic lever provides smooth and easy operation for precise directional control.
Built with durable construction, it ensures consistent performance in various industrial applications.
Ideal for pneumatic systems, it offers simple installation, dependable operation, and easy maintenance.
Ordering Code

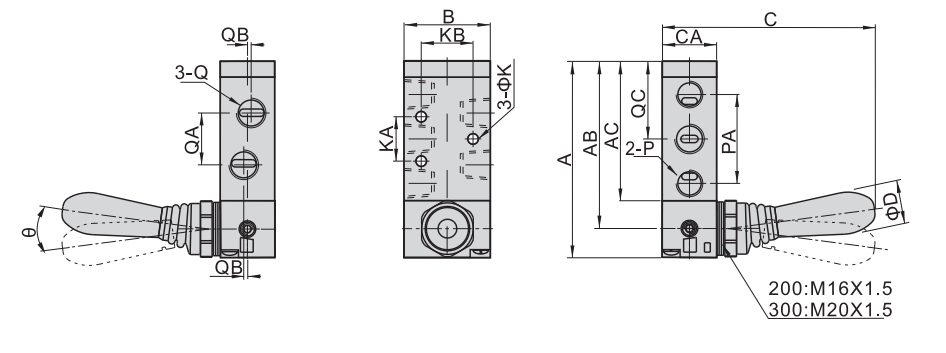

Dimensions
| 4H | 2 | 10 | 08 |
|---|---|---|---|
| Model manual Return |
Code 1:100 Series 4:400 Series |
Valve Type 10:5/2 Way |
Port Size Thread 06:1/8" 15:1/2" |
| Model\Item | A | AB | AC | B | C | CA | D | K | KA | KB | P | PA | Q | QA | QB | QC | O |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4H210-08 | 81.5 | 69.5 | 57.5 | 35 | 90 | 22 | 18 | 4.3 | 20 | 23.5 | 1/8" | 36 | 1/4" | 21 | 1.5 | 32.5 | 15 |
| 4H410-15 | 126 | 114 | 102 | 50 | 110 | 34 | 18 | 5.5 | 28 | 35 | 1/2" | 63 | 1/2" | 36 | 2 | 55.5 | 7.5 |
